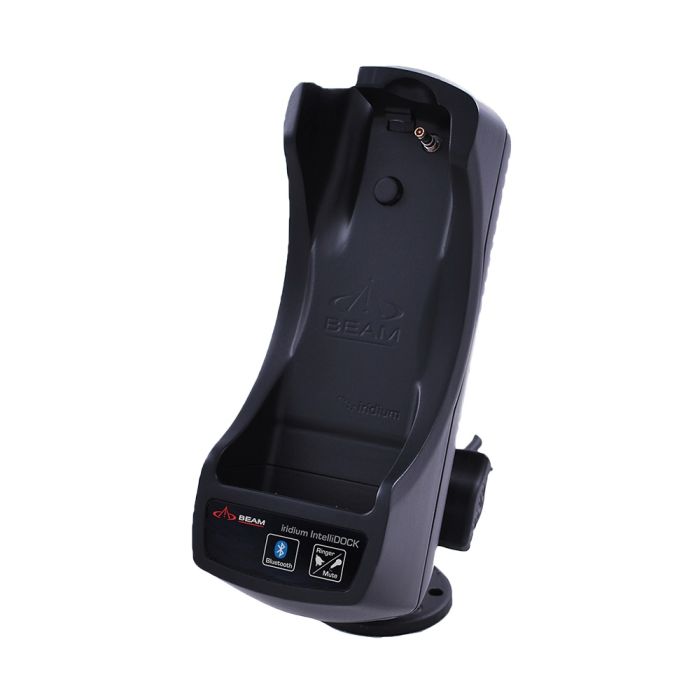

The Beam IntelliDOCK 9555, is the ideal low cost docking station for the Iridium 9555 handset that can be used in various maritime, transport or fixed site applications.
| PRODUCT TYPE | SATELLITE PHONE |
|---|---|
| USE TYPE | FIXED, MARITIME, VEHICULAR |
| BRAND | BEAM |
| PART # | 9555ID |
| NETWORK | IRIDIUM |
| CONSTELLATION | 66 SATELLITES |
| USAGE AREA | 100% GLOBAL |
| SERVICE | IRIDIUM VOICE |
| FEATURES | PHONE, NARROWBAND, BLUETOOTH |
| LENGTH | 20 cm (7.9") |
| WIDTH | 7.5 cm (3 inch) |
| DEPTH | 6.5 cm (2.6") |
| WEIGHT | 0.32 kg (1.3 lb) |
| COMPATIBLE WITH | IRIDIUM 9555 |
| ACCESSORY TYPE | DOCKING STATION |
| OPERATING TEMPERATURE | -30°C to 70°C (-22°F to 158°F) |
| STORAGE TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
| CERTIFICATIONS | IRIDIUM CERTIFIED, RoHS, C-TICK |
INTELLIDOCK CRADLE
• Securely holds 9555 handset
• Robust design and construction
• Charges 9555 handset ready for use
• Integrated antenna connection
• Handset always charged ready for use
INTEGRATED BLUETOOTH®
• Bluetooth® in-built in cradle
• Supports Bluetooth® Voice Accessories
• Convenient hands-free calling
IN-BUILT RINGER
• In-built ringer for enhanced ring indication VOICE, DATA, SMS, SBD
• Supports all Iridium voice, data, SMS and SBD services
• Access to prepaid, post paid & crew calling
• Bluetooth® & USB data connectivity
PRIVACY HANDSET
• Supports optional Beam privacy handset
• Auto sensing answer/hang-up intelligence
INSTALLATION
• Supports 9 - 32V DC power input
• Flexible installation via universal mount, also suitable for wall mounting
• Optional 110 - 240V AC plug pack available
QUALITY
• Professional industrial design
• 2 years peace of mind, replacement guarantee
• 100% factory tested
• Full certified, Iridium approved, RoHS, CE, IEC60945
In the Box:
Beam IntelliDOCK 9555
Ram-mount steel mounting bracket
Interface & power cables
User Manual
Installation Manual
