Cobham BGAN Explorer 325 Vehicular In Motion Satellite Internet System (403721A-00700) Compact voice and broadband solution for vehicles
With EXPLORER 325 BGAN terminal you are able to connect to the world via voice or data over Inmarsat BGAN instantly, even when your vehicle is moving.
Communicating on-the-move ensures your ability to get the job done and with EXPLORER 325, you are never out of touch, even if you're travelling at up to 200km/h.
Fast Connection It enables BGAN data speeds up to 384kbps standard IP and up to 128kbps streaming, and operation down to 5° elevation even when moving at speed across rough ground.
Benefit from a fast connection and the confidence that it won't be interrupted when traveling through harsh environments.
Easy to Deploy EXPLORER 325 is so easy to deploy - just place the antenna on the roof of your vehicle, connect it and your PC to the terminal and you have a mobile communication hub.
You can virtually be in your office in no time at all. Access VPN, catch up on email, browse the web; with fixed pricing and no roaming fees when you cross borders.
Compact Form At 35cm in diameter, 12cm high and weighing just 3.6kg, EXPLORER 325 has the smallest available vehicular BGAN antenna on the market.
The compact size and price-point of EXPLORER 325 opens up new applications for on-the-move communication, including trains and trucks.
Dimensions (H/W/D)
Transciever: 41x231x278mm Antenna: 120/?350mm
Weight
Transciever: 2.4 kg/Antenna: 4.4 kg
Standard IP
up to 384 kbps
Standard voice
4 kbps
Premium voice
3,1 kHz audio, 64 kbps (@elevation >45?)
More Information
PRODUCT TYPE
SATELLITE INTERNET
USE TYPE
VEHICULAR
BRAND
COBHAM
MODEL
EXPLORER 325
PART #
403721A-00502
NETWORK
INMARSAT
USAGE AREA
GLOBAL (EXCEPT POLAR REGIONS)
SERVICE
INMARSAT BGAN
FEATURES
PHONE, TEXT MESSAGING, INTERNET, EMAIL, FTP, VIDEO STREAMING, FoIP (FAX)
DATA SPEED
UP TO 240 / 384 kbps (SEND / RECEIVE)
STREAMING IP
32 kbps, 64 kbps, 128 kbps
FREQUENCY
L BAND (1-2 GHz)
INGRESS PROTECTION
IP 31 (TERMINAL), IP 56 (ANTENNA)
ACCESSORY TYPE
TERMINAL
OTHER DATA INTERFACES
2X ETHERNET
OPERATING TEMPERATURE
-25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE
-40ºC to 85ºC (-40ºF to 185ºF)
SURVIVAL TEMPERATURE
-40° to 80°C (-40° to 176°F)
CERTIFICATIONS
INMARSAT LAND CLASS 11 TYPE APPROVAL (VEHICULAR), CE COMPLIANCE, FCC, GMPCS

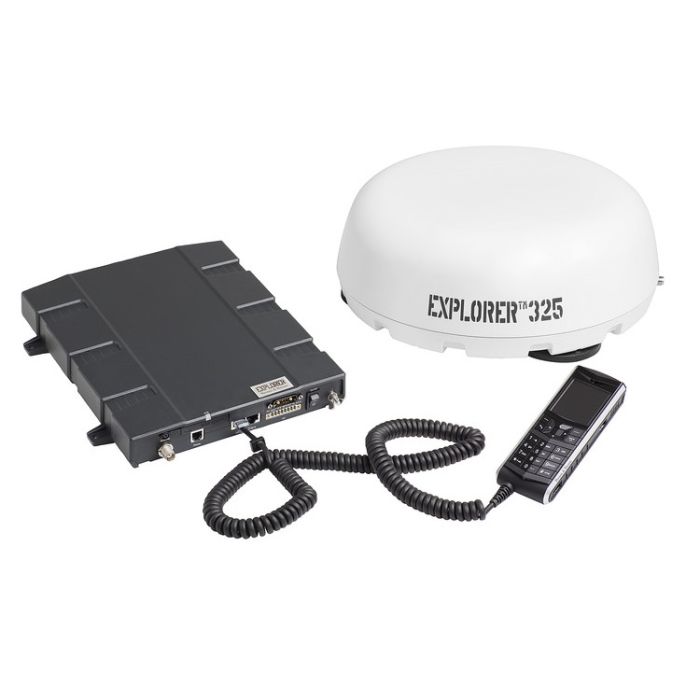

Included in system 1. Fully Integrated Auto-Tracking Antenna - Color: White - Built-in magnetic mounts for antenna mounting
2. EXPLORER Land Vehicular Transceiver. - Standard Ethernet Cable (2m/6.6ft) - Getting started kit - Quick Start Guide, CD with manuals - 12/24VDC Input Cable - Antenna Cable, Coax w/ TNC connector (2.7m/8.8ft)
3. Thrane IP handset wired with Cradle and Coiled Cable. Specific for the 403721A-00520 variant: - GNSS: Only GPS - no Glonass, Beidou or Galileo support - Alphasat: Works in EMEA but do not support the extended L-band frequencies under Alphasat
Inmarsat BGAN Coverage Map
This map depicts Inmarsat's expectations of coverage following the commercial introduction of Inmarsat's fourth L-Band region. It does not represent a guarantee of service. The availability of service at the edge of coverage areas fluctuates depending on various conditions.
