The Cobham EXPLORER 3075GX is a lightweight, yet rugged and portable solution, configured specifically for operation on the Inmarsat Global Xpress (GX) network.

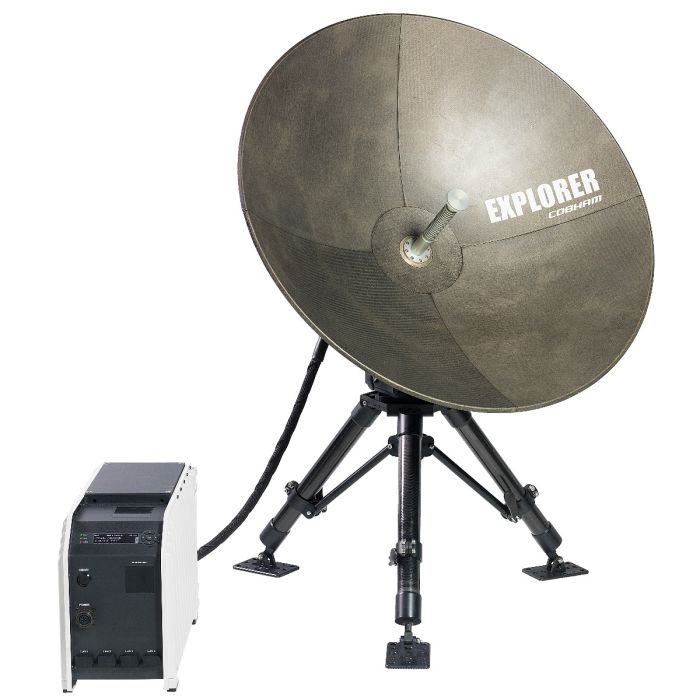

Cobham EXPLORER 3075GX Fly-Away Manual-Deploy VSAT System
EXPLORER 3075GX is a rugged and portable manual point Fly-Away system configured specifically for operation on the Inmarsat Global Xpress® (GX) network. The terminal is configured for commercial band operations and includes a fully integrated iDirect Core Module. The user friendly design allows operators with little satellite experience to access GX services within minutes.
Field Communication
EXPLORER 3075GX provides crucial connectivity for a diverse user base including Defense, Homeland Security, Law Enforcement, Emergency Response, Media, Telemedicine, Insurance, Remote office, Energy and Mining.
Regardless of the application, EXPLORER 3075GX offers continuity of operations with remote videoconferencing and Internet cloud services including voice, radio, data, fax and live streaming/broadcast.
The EXPLORER 3075GX has an embedded WLAN Access Point and four LAN interfaces. The LCD display and the electronic pointing assistance enables the user to access the satellite network within minutes.
Rugged yet lightweight
The EXPLORER 3075GX weighs around 29 kg and comes in two rugged hard cases for Fly Away. Each case is airline checkable and easy to carry along. The antenna is built from a firm carbon fiber composite, which gives high performance, yet is highly portable.
EXPLORER 3075GX's 4-piece reflector and base unit materials are a precise blend of lightweight design with strength and durability.
Applications
- Continuity of Business Operations
- Remote Business Videoconferencing
- Internet Cloud Services: Voice, Radio, Data, Fax, Live Broadcast
| PRODUCT TYPE | SATELLITE INTERNET |
|---|---|
| USE TYPE | PORTABLE |
| BRAND | COBHAM |
| MODEL | EXPLORER 3075GX |
| PART # | 407164A-00550 |
| NETWORK | INMARSAT |
| USAGE AREA | GLOBAL (EXCEPT POLAR REGIONS) |
| SERVICE | INMARSAT GX |
| ANTENNA SIZE | 75 cm (29.5 inch) |
| WEIGHT | 21,5 kg (47,5 lb) |
| FREQUENCY | Ka BAND |
| ACCESSORY TYPE | ANTENNA |
| INGRESS PROTECTION | IP 65 |
| OPERATING TEMPERATURE | -25°C to 55°C (-13°F to 131°F) |
| SURVIVAL TEMPERATURE | -40° to 80°C (-40° to 176°F) |
• Commercial Ka Band feed chainwith 5W BUC
• Easy to set up and use
• 4-Piece 0.75 m Axis Symmetrical Carbon Fiber Reflector
• IP65-compliant
• IPX5-compliant
• WLAN Access Point and LAN interface
• LCD Display and Web-Based User Interface
• 2 Case Solution, Airline Checkable
• Modular design - switch feed assembly and modem to access EutelSat KA-SAT
System includes:
- IP65-Rated Base Unit (Houses iDirect Core Module, Power Supply, GPS, Configuration / Pointing Hardware, User Interfaces, WLAN, LCD)
- Lightweight Tripod and Panning Head
- Ka Band Feed
- Commercial 5W Ka Band BUC
- LNB
- 4 piece Carbon Fiber Reflector
- 2 Pelican Storm Cases pack up

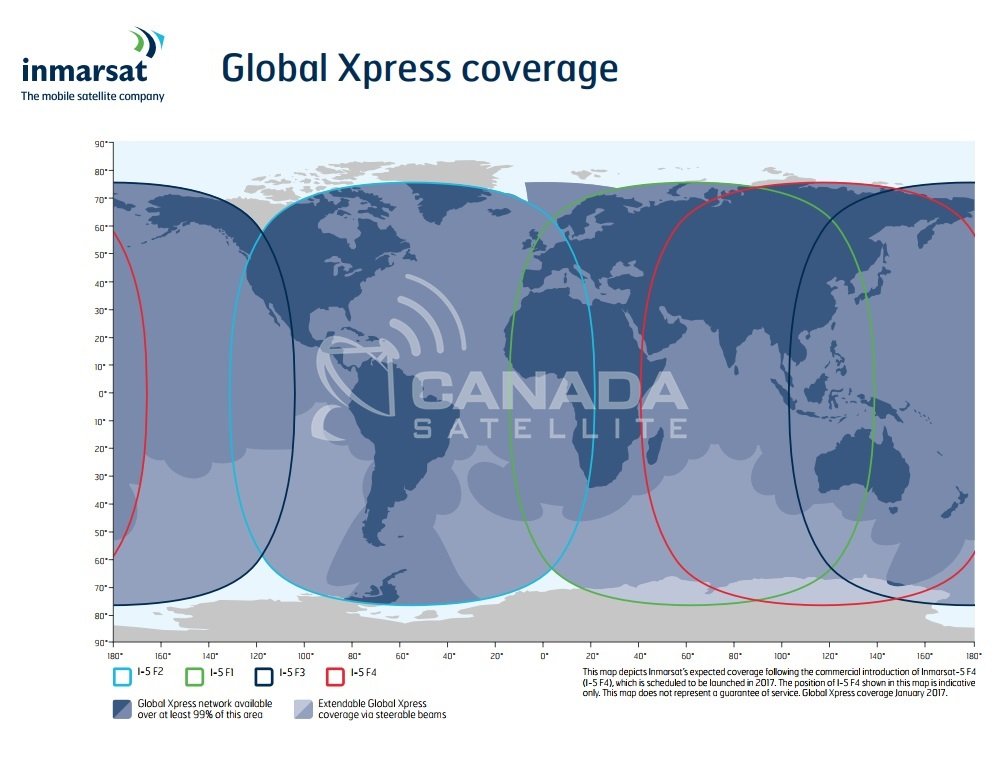

This map depicts Inmarsat’s expected coverage following the commercial introduction of Inmarsat-5 F4 (I-5 F4). The position of I-5 F4 shown in this map is indicative only. This map does not represent a guarantee of service. Global Xpress coverage January 2017.
