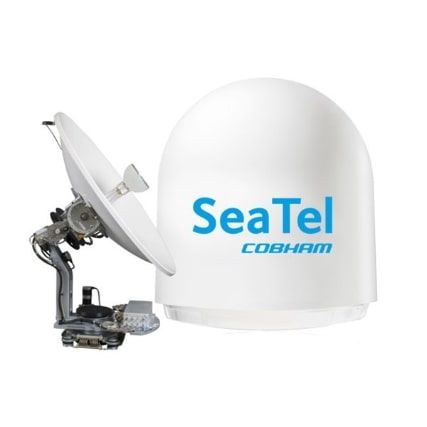

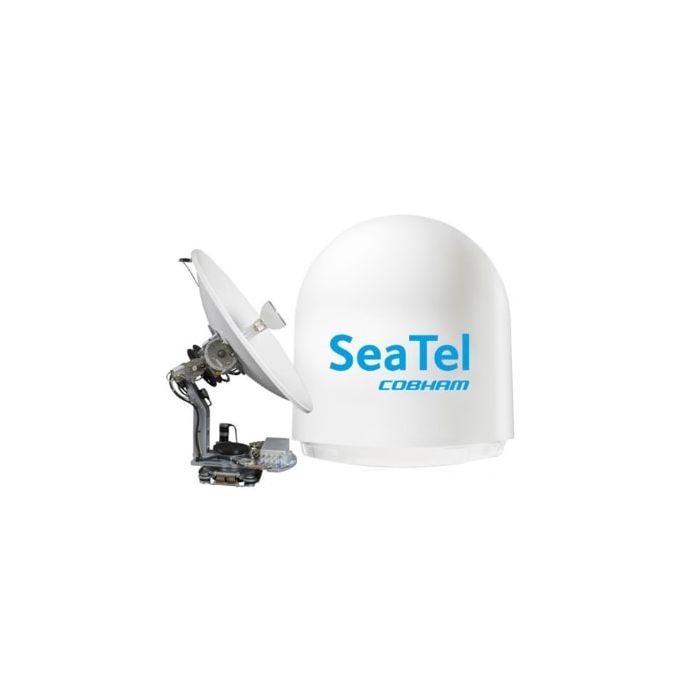

The Sea Tel 100 TVHD antenna system features a new triple port feed and LNB that are capable of simultaneously receiving all three of the main satellites that DIRECTV® broadcasts their High Definition and Standard Definition programming on.
The Sea Tel 100 TVHD is also capable of receiving worldwide Ku-Band High Definition and Standard Definition programming without having to make adjustments to the hardware.
Key Features & Benefits
• Receives (2) Ka-Band and (1) Ku-Band DIRECTV® satellites simultaneously. Enjoy DIRECTV® HD programming at the dock, on anchor, or underway.
• Programmable LNB that receives worldwide Ku-Band services. No more changing LNB’s when travelling to different regions of the world.
• Integrated DVB-S2 tuner for reception and identification of DVB-S2 and DVB-S satellite broadcasts.
• Frequency tuned radome minimizes signal loss.
• Easy installation and use. Uses same bolt pattern as the Sea Tel Series 04 systems.
• Extensive capabilities for online and offline troubleshooting.
• Intuitive and secured user interface with extensive data logging capabilities.
• Worldwide service along with 2 years parts and 2 years labor warranty (Flex warranties available).
• Built to last in extreme conditions.
• Global satellite library
| PRODUCT TYPE | SATELLITE TV |
|---|---|
| USE TYPE | MARITIME |
| BRAND | COBHAM |
| MODEL | SEA TEL 100 TVHD |
| PART # | 140113-901 |
| NETWORK | DIRECTV |
| USAGE AREA | GLOBAL (EXCEPT POLAR REGIONS) |
| WEIGHT | 243 KG |
| OPERATING TEMPERATURE | -20°C to 55°C |
