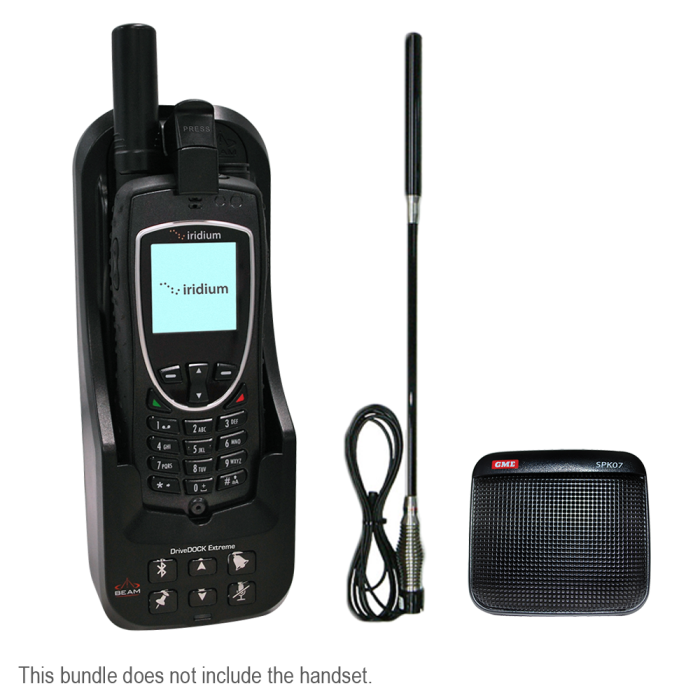

The DriveDOCK 9575 Bundle is an all-in-one kit, ideal for transport installation. This bundle includes:
Beam DriveDOCK Extreme Docking Station (EXTRMDD-WB2)
BEAM DriveDOCK Extreme hands-free docking solution provides a high quality transport installation for the Iridium Extreme handset. The docking station has in-built echo cancelling and full duplex technologies to provide superior voice quality and professional hands-free or privacy calls for any vehicle or aircraft*.
The Iridium Extreme handset fits securely in the dock, which features USB and serial data connectivity, phone charging and integrated antenna, data and power connection making it possible to keep all antenna cables and power permanently connected to the DriveDOCK ready for use.
The Iridium Extreme handset fits securely in the docking station with an easy click to lock mechanism that can be inserted and removed with a press of a button. It is purposely built to allow you to utilize the SOS emergency button and the ear-piece jack whilst docked.
DriveDOCK Extreme also supports the use of an optional privacy handset for added convenience or the Intelligent Privacy Handset, that replicates the full functionality of the Extreme handset in another location.
* Independent Aeronautical certification MUST be gained prior to installation.
| PRODUCT TYPE | SATELLITE PHONE |
|---|---|
| USE TYPE | MARITIME, VEHICULAR |
| BRAND | BEAM |
| PART # | EXTRMDD-WB2 |
| NETWORK | IRIDIUM |
| USAGE AREA | 100% GLOBAL |
| FEATURES | PHONE, TEXT MESSAGING |
| HEIGHT | 212 mm (8,3 pouces) |
| WIDTH | 83 mm (3.3 inches) |
| DEPTH | 76 mm (3 pouces) |
| WEIGHT | 0,48 kg (1,1 lb) |
| FREQUENCY | L BAND (1-2 GHz) |
| COMPATIBLE WITH | IRIDIUM 9575 EXTREME |
| ACCESSORY TYPE | DOCKING STATION |
| OPERATING TEMPERATURE | -30°C to 70°C (-22°F to 158°F) |
| STORAGE TEMPERATURE | -35°C to 85°C (-31°F to 185°F) |
| CERTIFICATIONS | IRIDIUM CERTIFIED, EMC COMPLIANCE, CE COMPLIANCE, RoHS, ELECTRICAL SAFETY, C-TICK |
