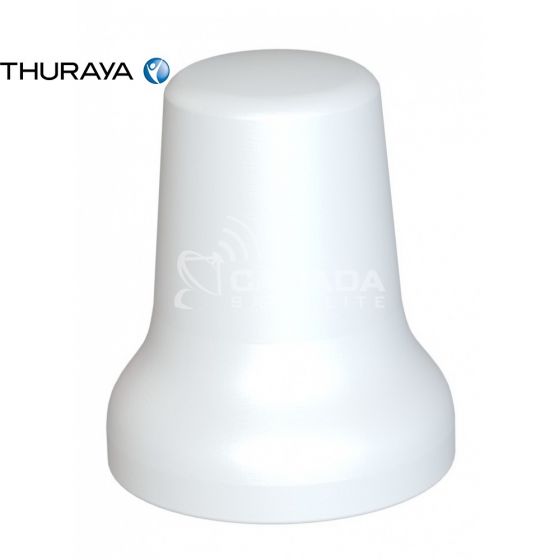

SCAN Passive Omni Heavy Duty Antenna for Thuraya (60805)

A$323.85
BRAND:
SCAN ANTENNA
PART #:
60805
WARRANTY:
12 MONTHS
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Scan-Passive-Omni-HD-60805
SCAN Passive Omni Heavy Duty Antenna for Thuraya (60805)

ELECTRICAL SPECIFICATIONS:
FREQUENCY1525 - 1660.5 MHz, 1575.42 MHz
SATELLITE SYSTEMThuraya, GPS
IMPEDANCE50 ohm
POLARISATIONLHCP (SAT)
AXIAL RATIO< 6 dB
GAIN2 dBic
LNA GAIN25 dB (GPS)
NOISE FIGURE1.2 dB (GPS)
SUPPLY VOLTAGE3.0 - 5.5 V DC (GPS)
CURRENT CONSUMPTION, AVERAGE20 mA
MECHANICAL SPECIFICATIONS:
COLORGlossy White
HEIGHT111 mm
DIAMETER94 mm
WEIGHT300 g
MOUNTING1" thread (US)(1"-14NF)
OPERATING TEMPERATURE-25C to +55C
SURVIVAL TEMPERATURE-40C to +80C
CONNECTOR 1TNC (f) (SAT)
CONNECTOR 2SMA (f) (GPS)
CABLENot included
MOUNTING PLACEOn pole using bracket
INGRESS PROTECTIONIP66
VIBRATIONIEC60945
ORDERING INFORMATION:
PART NO.60805
More Information
BRANDSCAN ANTENNA
PART #60805
NETWORKTHURAYA
USAGE AREAREGIONAL - SEE COVERAGE MAP
FEATURESPASSIVE
ACCESSORY TYPEANTENNA
OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
SURVIVAL TEMPERATURE-40° to 80°C (-40° to 176°F)

Thuraya Coverage Map


Thuraya Coverage Map

Thuraya's robust satellite network provides coverage in the most remote locations, ensuring congestion-free satellite communications to keep you connected at all times. From innovative satellite design to the reliability of each Thuraya device and accessory, we provide a truly superior satellite communication solution beyond the boundaries of terrestrial systems and cellular networks.

The Thuraya network does not cover north or south America.
