SCAN Passive Vehicle Antenna for Thuraya (60400)

A$329.37
BRAND:
SCAN ANTENNA
Stock Status:
In stock
AVAILABILITY:
SUBJECT TO AVAILABILITY
Product Code:
Scan-Passive-Vehicle-60400

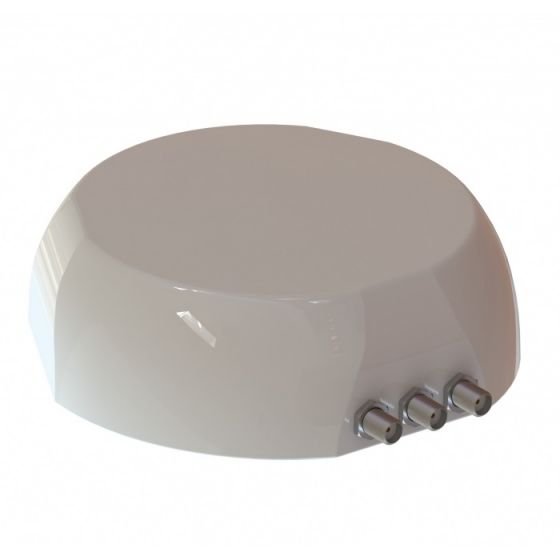

SCAN Passive Vehicle Antenna for Thuraya (60400)
The SCAN Antenna 60400 is a passive antenna for Thuraya Docking stations. It is compatible with SO, SG and XT handsets, the SM-2500 module and more. It requires no pointing towards satellite and the rugged design ensures a reliable performance in harsh conditions. The radome has a smooth surface and low loss properties.

ELECTRICAL SPECIFICATIONS:
FREQUENCY 1525 - 1660.5 MHz
SATELLITE SYSTEM Thuraya, GPS
IMPEDANCE 50 ohm
POLARISATION LHCP (SAT)
AXIAL RATIO < 6 dB
GAIN 4 dBic
LNA GAIN 25 dB (GPS)
NOISE FIGURE 1.2 dB (GPS)
SUPPLY VOLTAGE 3.0 - 5.5 V DC (GPS)
CURRENT CONSUMPTION, AVERAGE 20 mA (GPS)
MECHANICAL SPECIFICATIONS:
COLOR White
HEIGHT 40 mm
DIAMETER 106 mm
WEIGHT 170 g
MOUNTING Magnetic, anti-skid
CONNECTOR 1 SMA (f) (SAT)
CONNECTOR 2 SMA (f) (GPS)
MOUNTING PLACE On vehicle roof
INGRESS PROTECTION IP55
ORDERING INFORMATION:
PART NO. 60400
More Information
BRANDSCAN ANTENNA
NETWORKTHURAYA

Thuraya Coverage Map


Thuraya Coverage Map

Thuraya's robust satellite network provides coverage in the most remote locations, ensuring congestion-free satellite communications to keep you connected at all times. From innovative satellite design to the reliability of each Thuraya device and accessory, we provide a truly superior satellite communication solution beyond the boundaries of terrestrial systems and cellular networks.

The Thuraya network does not cover north or south America.
