SCAN Passive Vehicle Antenna for Thuraya (60410)

A$334.97
BRAND:
SCAN ANTENNA
PART #:
60410-001
WARRANTY:
12 MONTHS
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Scan-Passive-Vehicle-60410

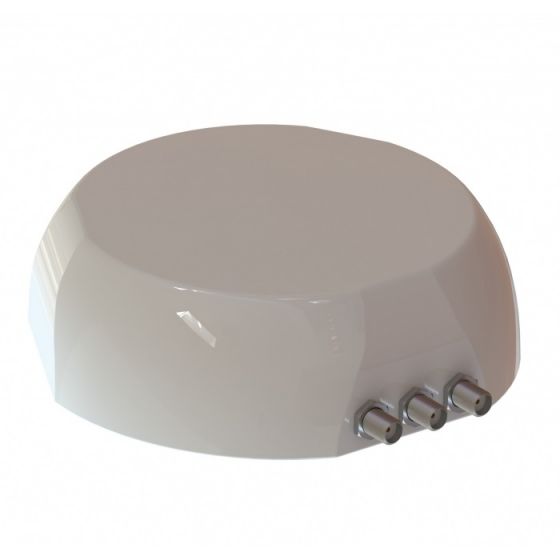

SCAN Passive Vehicle Antenna for Thuraya (60410)
The SCAN Antenna 60410 is a passive antenna for Thuraya Docking stations. It is compatible with SO, SG and XT handsets, the SM-2500 module and more. It requires no pointing towards satellite and the rugged design ensures a reliable performance in harsh conditions. The radome has a smooth surface and low loss properties.

ELECTRICAL SPECIFICATIONS:
FREQUENCY1525 - 1660.5 MHz, 824 - 960 MHz, 1710 - 2170 MHz (Multiband GSM)
SATELLITE SYSTEMThuraya, GPS
IMPEDANCE50 ohm
POLARISATIONLHCP (SAT)
AXIAL RATIO< 6 dB
GAIN4 dBic
LNA GAIN25 dB (GPS)
NOISE FIGURE1.2 dB (GPS)
SUPPLY VOLTAGE3.0 - 5.5 V DC (GPS)
CURRENT CONSUMPTION, AVERAGE20 mA (GPS)
MECHANICAL SPECIFICATIONS:
COLORWhite
HEIGHT36.5 mm
DIAMETER111 mm
WEIGHT170 g
MOUNTINGMagnetic, anti-skid and anhesive tape
CONNECTOR 1SAT: SMA-female
CONNECTOR 2GSM: SMA-female
CONNECTOR 3GPS: SMA-female
CABLENo cables supplied
MOUNTING PLACEOn vehicle roof or trunk lid
ORDERING INFORMATION:
PART NO.60410
More Information
PRODUCT TYPESATELLITE PHONE
BRANDSCAN ANTENNA
PART #60410-001
NETWORKTHURAYA
USAGE AREAREGIONAL - SEE COVERAGE MAP
ACCESSORY TYPEANTENNA
OPERATING TEMPERATURE-20°C to 70°C (-4°F to 158°F)

Thuraya Coverage Map


Thuraya Coverage Map

Thuraya's robust satellite network provides coverage in the most remote locations, ensuring congestion-free satellite communications to keep you connected at all times. From innovative satellite design to the reliability of each Thuraya device and accessory, we provide a truly superior satellite communication solution beyond the boundaries of terrestrial systems and cellular networks.

The Thuraya network does not cover north or south America.
